Paper

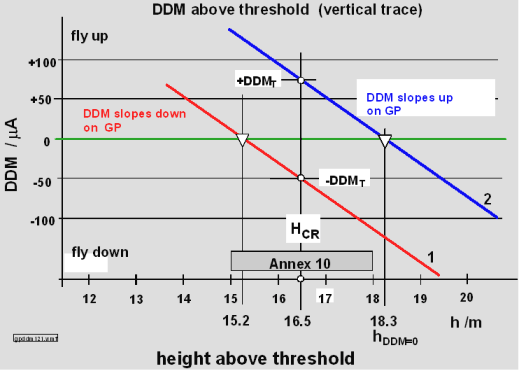

Two cases of schematically displayed DDM above threshold (vertical trace); case 1: height of DDM=0 is under the crossing height HCR of 16.5m, the DDM-curve is sloping down close to threshold; case 2: height of DDM=0 is above the crossing height
